Lombardini Marine is an internationally renowned Italian company producing four-stroke marine LDW M series diesel engines that are exceptionally light and compact, with very high reliability, durability and low fuel consumption at high engine power. The range of Lombardini engines from 13hp up to 240 hp

Marine engines are installed on yachts, pleasure boats, longboats, fishing boats and motobots. Motors LDW M have an original, developed and patented by Lombardini company fuel injection system (pump injector) directly into the engine cylinder. Engine cooling has a dual-circuit system (water-water). The overhead camshaft and timing belt reduce noise.

All components and assemblies subject to periodic inspections are located in the upper part of the engine, directly under the cover - this ensures simplicity and low cost of possible engine maintenance.

Lombardini was founded by Adelmo Lombardini in 1922, and in 1933 Adelmo, together with his sons Alberto and Raniero, decided to open his own Lombardini Fabrica Motori plant near the town of Reggio Emilia for the production of engines. Since its founding, Lombardini has relied on the development and implementation of the most modern and environmentally friendly technologies, which is why today the company is a recognized world leader in many areas of modern engine building.

After World War II, Lombardini began producing gasoline and diesel engines. In 1957, the company began production of single-cylinder air-cooled diesel engines, in 1959 the product line was expanded - the first Castoro model caterpillar agricultural tractor appeared.

In 1963, it was decided to build a plant in Pieve. Then there is the opening of foreign branches in France, Spain, Germany, and by the end of the 60s the company gains international importance.

In 1979, the construction of a research center. Later, the production of marine engines of Lombardini, as well as the production of diesel engines of water cooling, is established. The company continues to grow, and in the 90s, Lombardini acquired Acme in Valdobbiadene. The company strives to improve product quality and improve its products and in 1999 acquired Ruggerini Motori, the main competitor of Lombardini. In 2007, Lombardini was bought by Kohler Co ..

LOMBARDINI LDW M Engine range

Engine model	Power HP	Volume cm / 3	dimensions	piston / piston stroke	number of cylinders	Type of fuel	rotational speed	Weight, kg
LDW 194 JMT	180.0	1910.0	70,7х66,5х100,5	88,0x90,4	4	diesel	3900	284.0
LDW 245JMT	200	2387	66.5x70.5x109.5	82,0x94,0	5	diesel	4200	315.0
LDW 401 M	9.0	395	39,0x48,5x 38,0	86.0x668.0	1	diesel	3600	62.0
LDW 502M	13	505	45,2х49,2х56,0	72,0x62,0	2	diesel	3600	108
LDW 702 M	20	686	48,8х52,2х56,0	75.0x77.6	2	diesel	3600	125.0
LDW 1003 M	30	1028	48,8x52,2x64,3	75.0x77.6	3	diesel	3600	141.0
LDW 1404 M	40	1372	48.8x24.9x72.6	75.0x77.6	4	diesel	3600	160
LDW 1904 M	50	1995	54,0x63,0x89,5	88.0x82.0	4	diesel	3200	257.0
LDW 2204 M	60	2199	63,0х54,0х92,6	88,0x90,4	4	diesel	3600	257.0
LDW 2204 MT	84	2199	54,0x64,9х93,1	88,0x90,4	4	diesel	3200	278.0

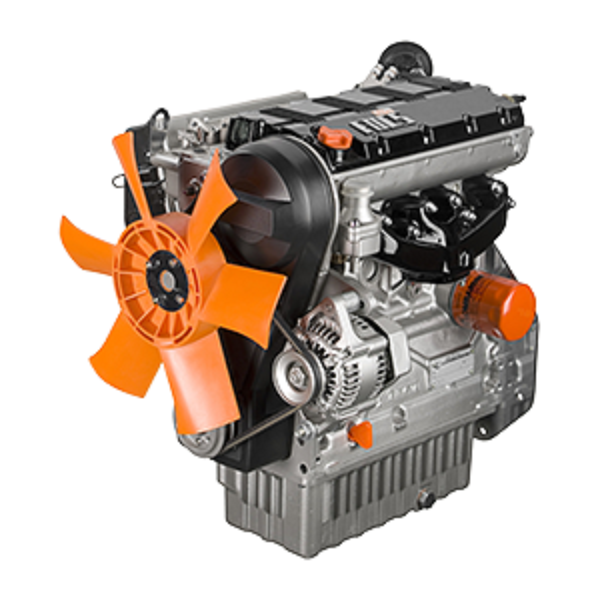

Lombardini marine engines workshop manuals
